Assign an IP Address to the Kinetix 5500 Drive
You can assign an IP address to the Kinetix 5500 drive manually via the drive keypad or dynamically via a DHCP-enabled server. Because this publication describes tasks intended to be completed on a private network, you assign an IP address.
The Kinetix 5500 drive has two status indicators and an LCD status display. The indicators and display are used to monitor the system status, set network parameters, and troubleshoot faults. Four navigation buttons are located directly below the display and are used to select items from a soft menu.
You program network parameters by using the LCD display and navigation buttons.
From the LCD display, select SETUP>NETWORK and choose STATIC IP.
The default network setting is STATIC IP with an IP address of 192.168.1.1.
to configure the following parameters:
Cycle 24V control power.
Settings are stored in nonvolatile memory. IP addressing may also be changed through the Module Configuration dialog box in RSLinx® software. Refer to the Kinetix 5500 Servo Drives User Manual, publication
, for hel p setting the network parameters.
Changes to the IP addressing take effect only after cycling 24V control power.
DC BUS: 0.3V
- Canon - AE-1
- Fitbit - Flex
- Nikon - D5000
- Nikon - D40
- Nikon - D3100
- Nikon - D90
- Nikon - D7000
- Nikon - D80
- Nikon - D3000
- HP - Officejet Pro 8600
- Canon - EOS 60D
- HP - 12C Financial calculator
- Allen-Bradley Manuals
- Servo Drives
- Kinetix 5500 series
- Quick start manual
Assign An Ip Address To The Kinetix 5500 Drive - Allen-Bradley Kinetix 5500 series Quick Start Manual
- page of 50 Go / 50
Table of Contents
Assign an IP Address to the Kinetix 5500 Drive
- Quick Links:
- Connect the Kinetix 5500 Drive to...
- Assign an Ip Address to the...
- Configure the Motion Group
Hide quick links:
Related manuals for allen-bradley kinetix 5500 series.
Related Content for Allen-Bradley Kinetix 5500 series
Rename the bookmark
Delete bookmark, delete from my manuals, upload manual.
1-800-730-0292 | [email protected]

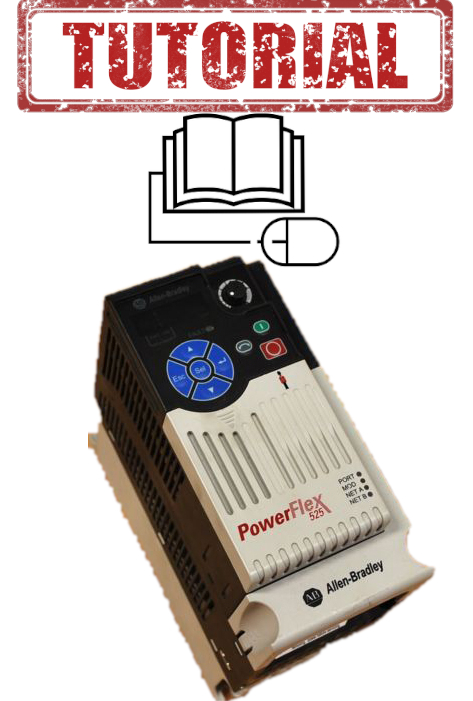

Tutorial: How to Set Up IP Address Parameters for the PowerFlex 525
